SABRE HIGHLIGHTS AND FEATURES

No separate transmitter and receiver.
Can be configured in a window mode, for example, a trigger will only occur if the subject is detected between 2 and 4 meters.
The sensor range is not affected by sunlight or ambient light levels.
Wi-Fi enabled, can be controlled by your favorite device (both iOS and Android)
Internal rechargeable Li-Ion battery.
Includes an external power jack for long term assignments.
The Internal battery can also be charged using a 7W or larger solar cell. See a connection diagram.
Wi-Fi and LED brightness can be completely controlled for longer battery life.
3 User presets for quick recall of specific setting combinations.
Start and Stop Video recording with Sony cameras using this optional cable.
Two Sabres can be configured in a dual beam configuration.
3 Outputs - Including Camera shutter, 1/2 Press, and an Aux output.
Control the high speed shutter and camera with the Sabre - StopShot is not required.
Built in 1/4-20 Tripod mount Housing is weather proof - designed to be left in the rain.
Features all weather proof connectors.
Small and compact for easy travel.

CONTROL THE SABRE FROM YOUR FAVORITE MOBILE DEVICE

ANDROID AND IOS

Control and configure your Sabre sensor with your iOS phone (iOS 8.4 or higher) or Android device (4.0.3 or higher), the application is available in the App Store or Google Play for $10. You can also use your computer to configure it before you go - the PC and Mac versions are available here for free. Once the Sabre is configured disconnect your device from the Sabre and Wi-Fi will automatically turn off to save battery life. Click the link for instructions on connecting your iOS device or Android device.

TWO STANDARD AND THREE USER PROGRAMMABLE OPERATING MODES

Two Pre-configured Modes - Auto and Manual - these modes work with no changes to the settings - hook the Sabre up to your camera and go. Optionally you can configure any of the User modes to meet your specifications.

SABRE IS FULLY USER CONFIGURABLE

The Sabre is fully configurable this includes both the triggering distances and all of the timing parameters. Even the sample rate is user configurable - if you don't need quick response but want long battery life - just slow down the sampling rate. Want a quick response time just speed up the sampling rate. You can also control the number of shots for each trigger. The Sabre can also keep the camera awake to minimize shutter lag - very important for birds or other fast moving subjects.

LIDAR - THE HEART OF THE SABRE

The Sabre is built around a LIDAR sensor, LIDAR is a combination of Light and Radar. The LIDAR sensor sends out pulses of invisible IR light and measures the time the pulse takes to be reflected back to the source. The LIDAR sensor is completely unaffected by changes in ambient light. The Sabre triggering distance are accurate to +/- 2 cm. All of this making it an ideal sensor for capturing birds in flight.

SABRE CONNECTIONS

SOLAR POWER

A 7W or larger solar cell in full sun will run the Sabre and provide enough power to recharge the internal battery for those long term monitoring applications.

DUAL BEAM AND AUX OUT

Simply connect a cable between two Sabre sensors to get dual beam functionality. This allows for directional triggering or covering a larger area. Use the Auxiliary output to fire flashes or a second camera.

CAMERA CONTROL

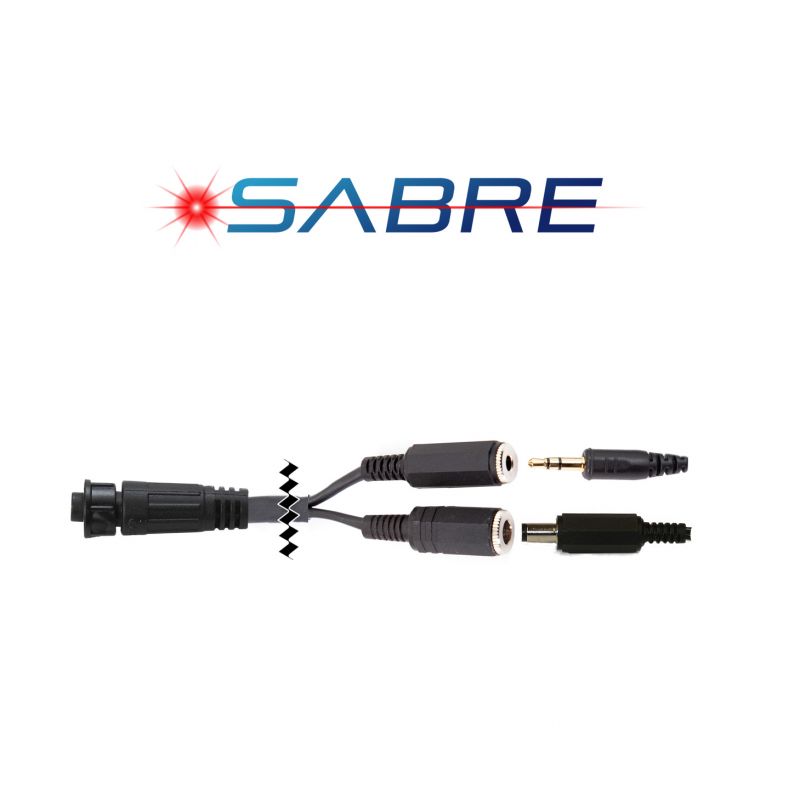

Single connector for 1/2 press, full press and power input. This cable is included. See the connection diagrams.

TRIPOD MOUNT

Sabre includes a standard 1/4-20 weather sealed tripod mount.

Write Your Own Review

You're reviewing:Sabre

Your Rating

Product Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

TOP CUSTOMER QUESTIONS AND ANSWERS (FAQ)

HOW DOES SABRE TRIGGER MY CAMERA?

Sabre uses the same port on your camera as a remote shutter switch. The Sabre includes all of the cables you will need to interface it to your camera. Hover over the blue info icons to find a compatible camera list above. If you need additional shutter cables you can find them here along with a full list of compatible cameras.

IS IT POSSIBLE TO USE SABRE TO FIRE THE FLASH SO SHUTTER LAG CAN BE ELIMINATED?

Yes, Sabre has and additional Aux output that can be used to fire the flash. In this configuration Sabre will hold open the camera shutter in Bulb Mode while waiting for a trigger. Once the trigger is received it will fire the flash and reset the camera shutter getting ready for the next shot. This is the ideal way to photograph subjects in the dark like bats or flying squirrels. There is a how-to page detailing the wiring and settings required.

CAN I USE TWO SABRES IN A DUAL BEAM CONFIGURATION?

Yes, using a 4-pin cable you can connect two Sabres together to perform directional triggering (A->B, B->A), cross beam triggering (A&B), or increase the active triggering area (AorB).

CAN I USE SABRE TO TRIGGER ON INSECTS?

While Sabre is sensitive enough to trigger on insects (I have many pictures of bees from using Sabre around a hummingbird feeder), we recommend the StopShot and the Cross Beam Sensor for insects. There are two main reasons; the first is due to the small size and speed of insects. Sabre has a 10mS (10/1000 sec) response time, while this is plenty fast for birds, it makes getting a good macro shot that is in focus shot very difficult. If you are shooting at a magnification of 1X, imagine how little time the insect is actually in the frame when traversing through the beam. This is why we recommend the high speed shutter and cross beam sensors for insects.

HAVE ADDITIONAL QUESTIONS ABOUT ORDERING AND SHIPPING?

Visit our general FAQ page.

Electrical Specifications

Specifications	MIN	NOM	MAX	UNITS
Input Voltage	12	12	28	Vdc
Input Current (12Vdc in)	-	50	650	mAdc
Shutter Output Current Sink	-	-	1	Adc
Operating Temperature	-20	25	60	C
	-4	77	140	F
Charging Temperature	0	25	40	C
	32	77	104	F
Laser Wavelength	-	905	-	nm
Laser Power - Pack	-	1.3	-	W
Laser Pulse Width	-	500	-	ns
Weight	-	278	-	g

Physical Specifications

Length	127mm (5 in)
Width	78mm (3 in)
Height	34mm (1.3 in)
Weight	0.272kg (9.6oz)
Outputs	3
Max Range	15m (50 ft)
Sampling Rate	Variable - 10mS min

Sabre Resources

Owner's Manual

Firmware Updates

Sabre Computer App

Scout PIR Configuratoin Software Downlaod (Mac)

Scout PIR Configuratoin Software Downlaod (PC)

Computer App Notes:

The Sabre application is written in Java, and you will need to make certain you have Oracle's Java installed. The Sabre Application will let you know if you need to update your version of Java. You can find the latest version here:

http://java.com/download

Detailed instructions on using the Sabre Application can be found in the Owner's Manual.

Photographing Flying Squirrels with Sabre

Steve Gettle shares his technique to photograph Flying Squirrels in his backyard in Michigan.
Photographing Bats with Sabre - Eliminate Shutter Lag

Learn how to photograph bats in flight with Sabre. Use Sabre to control both the camera and fla
Connecting Sabre

See various options to connect your Sabre to your camera.

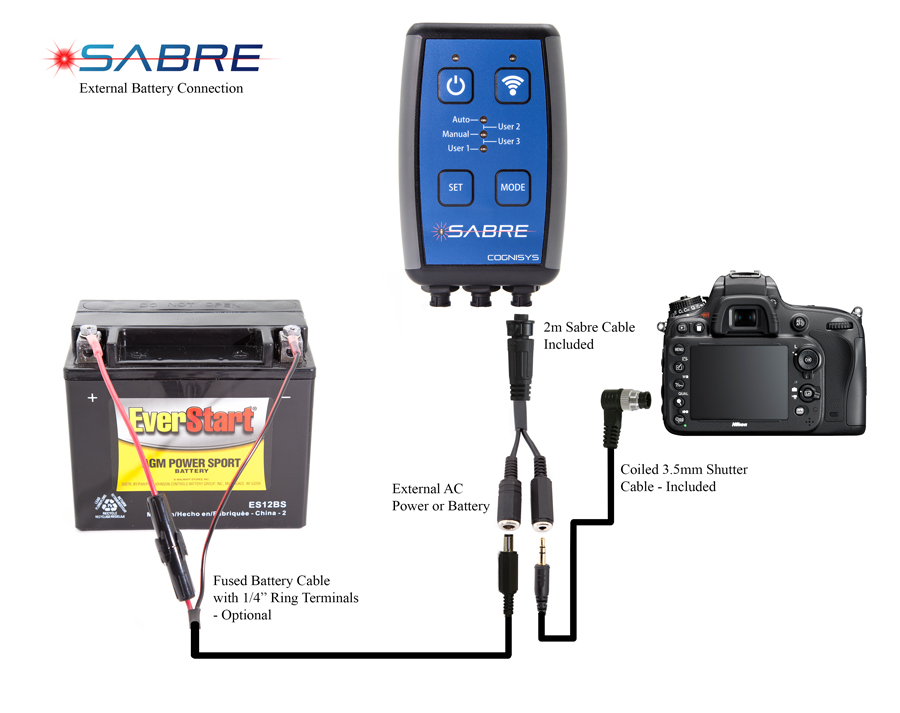

Sabre Battery Life and External Power

Find details on the battery life of Sabre as well as how to connect it to external batteries and
